J-Link Mictor 38 Adapter
€148.00*
Adapts from the standard J-Link 20-pin 0.1" target connector to Mictor
38-Pin connector.For additional product information, please visit segger.com.
10-pin Needle Adapter
€98.00*
Adapts from 20-pin, 0.1 inch Standard connector to 10-pin, 0.05 inch
TAG-Connect needle patternFor additional product information, please visit segger.com.
RX Adapter
€98.00*
Adapts from .1" 20-pin Standard connector to 14-pin RX600 JTAG connector
incl. .1" 14-pin cableFor additional product information, please visit segger.com.
Measurement+Patch Adapter
€98.00*
Adapter for non-standard J-Link <-> Target connection including 10
jumper wires for manual setupFor additional product information, please visit segger.com.
6-pin Needle Adapter
€98.00*
Adapts from 20-pin, 0.1 inch J-Link connector to 6-pin, 0.05 inch needle
pattern.Incl. 6-pin cable with pins and legs.For additional product information, please visit segger.com.
5V Target Supply Adapter
€98.00*
The 5V Target Supply Adapter provides a default voltage of 5 V to power
the target using pin 19. The voltage can be adjusted by replacing resistors. It can be plugged directly between a Flasher or J-Link and the debug cable, maintaining a 1:1 connection of all debug signals.For additional product information, please visit segger.com.
Programming Voltage Adapter
€98.00*
The SEGGER Programming Voltage Adapter delivers two externally provided
voltages to the target for programming targets with voltage requirements beyond 5 V. It can directly be
inserted between the Flasher and the debug cable, maintaining a 1:1 connection of all debug signals.For additional product information, please visit segger.com.
Test Farm Power Adapter
€98.00*
The Test Farm Power Adapter enables power that is supplied to a target
through a USB connector to be switched on and off remotely using J-Link software. Since the debug signals are
maintained, it can be used along with Ethernet featured debug probes like the J-Link PRO to build test farms.For additional product information, please visit segger.com.
MIPI-60 Adapter
€98.00*
The MIPI-60 Adapter allows JTAG connections between J-Link, J-Trace or
Flasher and Jacinto7 TI target hardware systems. It provides a 19-pin JTAG/SWD and Trace connector, which allows
TPIU tracing with up to 4 pins, and an Arm Standard 20-pin connector.For additional product information, please visit segger.com.
TI-CTI-20 Adapter
€68.00*
Adapts from the standard J-Link 20-pin 0.1" target connector to TI CTI-20
connector.
For additional product information, please visit segger.com.
Supply Adapter
€68.00*
The J-Link Supply Adapter provides a fixed I/O voltage level for VTRef. It
eliminates the need to connect VTRef (pin1) to the target.
For additional product information, please visit segger.com.
SiLabs C2 Adapter
€68.00*
Adapts from 20-pin, 0.1 inch J-Link connector to 10-pin, 0.1 inch SiLabs
8051 C2 connector.Incl. 10-pin cable.For additional product information, please visit segger.com.
Target Supply Adapter
€68.00*
The J-Link Target Supply Adapter provides a default voltage of 3.3 V to
power the target using pin 19. The voltage can be adjusted by
replacing resistors.For additional product information, please visit segger.com.
Flying Wire Adapter
€68.00*
Adapts from the standard 20 pin 0.1" J-Link connector to a 10-pin row,
allowing to connect J-Link to target PCBs via flying wires.Especially
useful when hooking up prototype HW where no final connector is decided yet. Or for manually connecting a J-Link to
ST Discovery boards.For additional product information, please visit segger.com.
ARM-14 Adapter
€68.00*
Adapter for Arm targets with 14-pin JTAG connector.Incl. 14-pin ribbon cableFor additional product information, please visit segger.com.
14-Pin TI Adapter
€49.00*
Adapts from .1" 20-pin Standard connector to 14-pin TI connector incl.
14-pin cableFor additional product information, please visit segger.com.

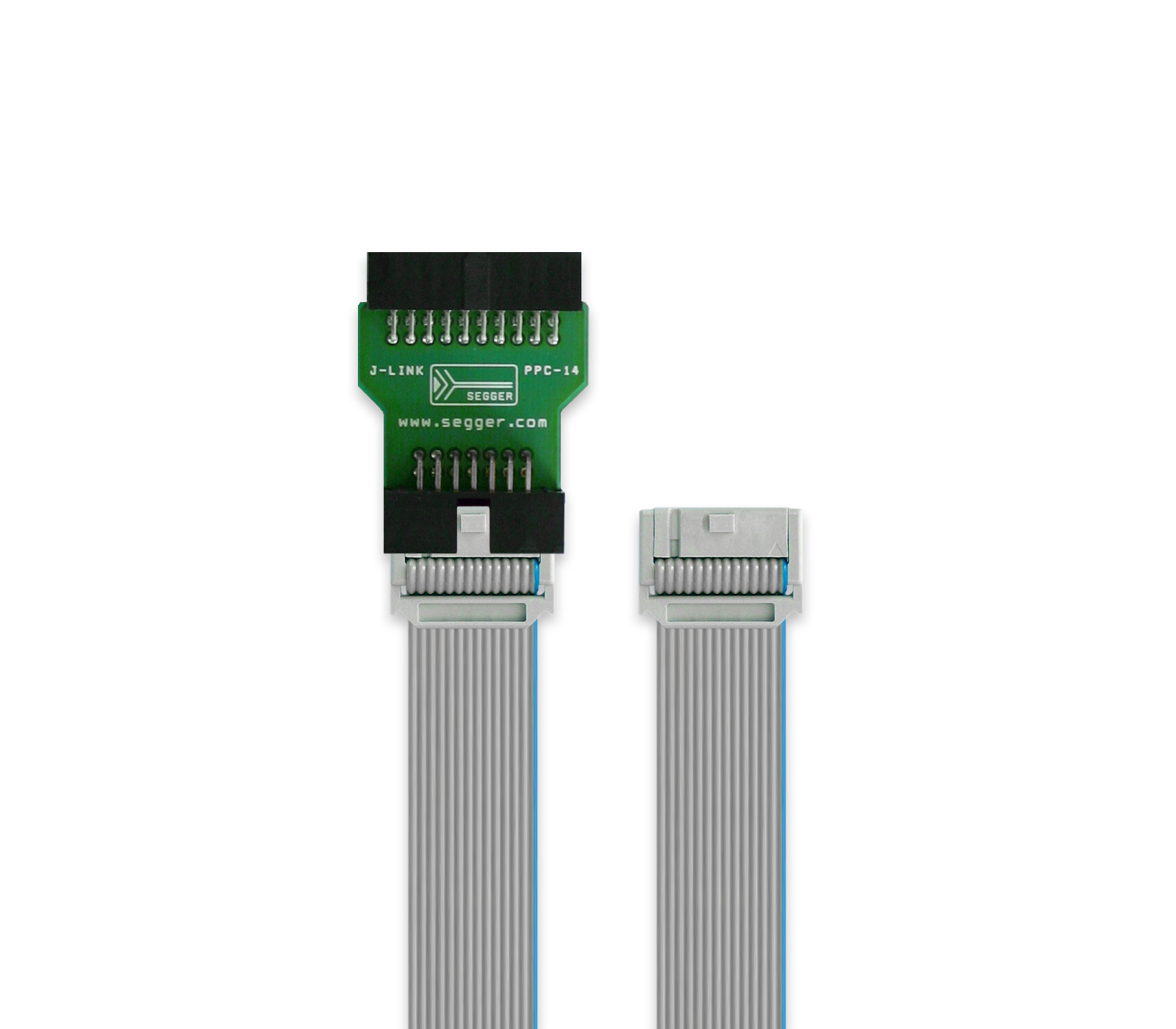

PPC 14-Pin Adapter
€49.00*
Adapts from 20-pin, 0.1 inch Standard connector to 14-pin, PPC connector
incl. 14-pin cableAdditional Product Information on segger.com
Microchip LVP Adapter
€49.00*
Adapts from the standard J-Link 20-pin 0.1" target connector to Microchip
RJ11 modular debug connector. Incl. 6-pin RJ11 modular connector cable.For additional product information, please visit segger.com.
RX FINE Adapter
€49.00*
Adapts from 20-pin, 0.1‘‘ standard J-Link connector to 14-pin, 0.1" RX FINE
connector. Incl. 14-pin cable.For additional product information, please visit segger.com.
2mm Adapter
€49.00*
Adapts from 20-pin, 0.1‘‘ standard J-Link connector to 20-pin, 2mm
connector.For additional product information, please visit segger.com.
Signal Smoothing Adapter
€49.00*
The J-Link Signal Smoothing Adapter can be inserted between the J-Link
debug probe and the debug target to overcome signal integrity issues.For additional product information, please visit segger.com.
Intel FPGA Adapter
€49.00*
The Intel FPGA Adapter (formerly J-Link Altera Adapter) connects to the
10-pin Intel FPGA JTAG connector providing debug access to FPGA based MCU cores like the dual-core ARM Cortex-A9 in
the Cyclone V devices.Incl. 10 pin ribbon cableFor additional product information, please visit segger.com.
Xilinx Adapter
€49.00*
Adapts from the standard J-Link 20-pin 0.1" target connector to Xilinx 14
pin 2 mm connector (comp. Platform Cable USB II).Incl. 14 pin
1 mm ribbon cableFor additional product information, please visit segger.com.
Microchip 2-Wire JTAG TDI Adapter
€49.00*
Adapts from J-Link .1" 20-pin connector to Microchip .1" 6-pin
connector.Package content
20-pin to 6-pin adapter
.1" 6-pin ribbon cable (21 cm)
For additional product information, please visit segger.com.
